Flexibility
Extreme versatility for indoor cultivation. Full-cycle spectrum for both veg and bloom cycles. Can be rack mounted for vertical farming.
Scalability
Designed for commercial grow operations with optional controls. Commercial / Industrial lighting expertise, know-how, and experience delivered to horticulture.
Uniformity
Maximize grow spaces with a low profile grow light that delivers maximum yield and superior uniformity versus HID. Light is more evenly distributed across the canopy and at higher intensities.
Designed in California
The Evio AGX Series is a full-cycle top-lighting solution for commercial cannabis cultivation, with variable light intensities to use from vegetative growth to bloom.

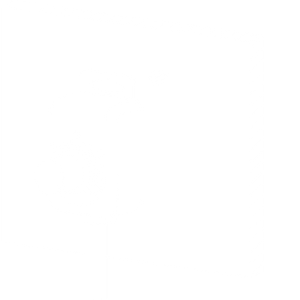

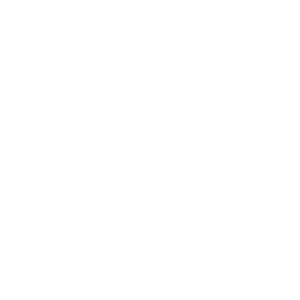

CONVENIENT MOUNTING
SPECIFICATION FEATURES
Affordable Lighting
The dimmer is a very cost effective and efficient dimming solution for manual control of grow lights.
Remote Control
Provides granular dimming control of grow lights to adjust to plant needs and grow cycles.

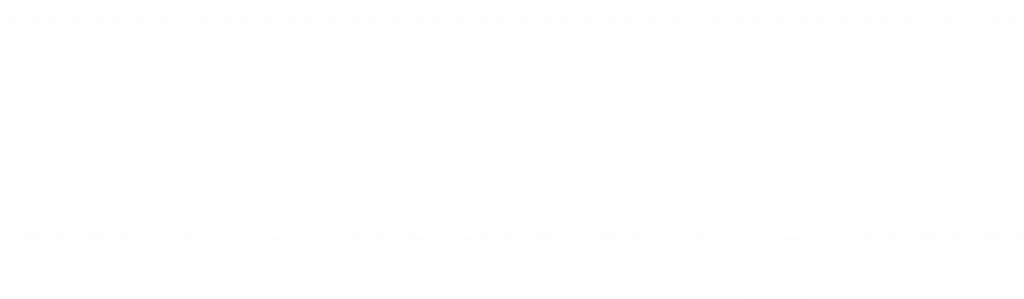

DAISY CHAIN FEATURE
PRODUCT ANATOMY
- Slim Profile / Foldable Design
Easy shipping, handling, and storage - Advanced Passive Heatsink
Long life, lower maintenance, and less HVAC costs. - Robust Power Supply / Driver
High performance / quality for longevity and efficiency - Optimized LED Spectrum
High-grade LED, full spectrum, high intensity
PRODUCT CERTIFICATIONS
Included with the Grow Light: (1) LED AGX Grow Light Fixture, (1) 8.5-ft. Power Cord (240V NEMA 6-15P Plug), (1) RJ14 Data Cord (10ft), (2) Adjustable Pulley System, (2) 2-point Aircraft cable with carabiner, (1) Instruction Manual.
PPFD Distribution – 12” Height from Canopy
PERFORMANCE DATA
| Form Factor | Model No. | Input Power | PPF (Nominal) | PPE (Nominal) |
|---|---|---|---|---|
|
6-Bar |
AGX-6L-320-850-IFC |
320W |
850 μmol/s |
2.66 μmol/J |
|
AGX-6L-630-1700-IFC |
630W |
1700 μmol/s |
2.70 μmol/J |
|
|
AGX-6L-630X-1900-IFC |
630W |
1900 μmol/s |
3.02 μmol/J |
SPECTRUM DISTRIBUTION
PRODUCT DIMENSIONS
PERFORMANCE SUMMARY
| AC Input Voltage | 120V-277V, 347V/480V |
| AC Input Power | 320W, 630W |
| Light Source | LED |
| Spectrum | Indoor Full-Cycle |
| Light Output PPF | See Configurations Tab |
| Efficacy | See Configurations Tab |
| Nominal Beam Angle | 120 Deg. |
| Mounting Height | 6”-15” Above Canopy |
| Coverage | 1 fixture per 4’ x 4’ area |
| Dimming | 0-10V Continuous (10-100%) |
| Operating Temp. | -20°C to 40°C |
| THD | < 20% |
| Life Rating | 75,000 hours |
| Certifications | ETL |
| Warranty | 5 Years |
| Ingress Protection | Damp Location |
APPLICATIONS
INDOOR
VEGETATIVE
VERTICAL
