Flexibility
Extreme versatility for indoor cultivation. Full-cycle spectrum for both veg and bloom cycles. Can be rack mounted for vertical farming.
Scalability
Designed for commercial grow operations with optional controls. Commercial / Industrial lighting expertise, know-how, and experience delivered to horticulture.
Uniformity
Maximize grow spaces with a low profile grow light that delivers maximum yield and superior uniformity versus HID. Light is more evenly distributed across the canopy and at higher intensities.
Designed in California

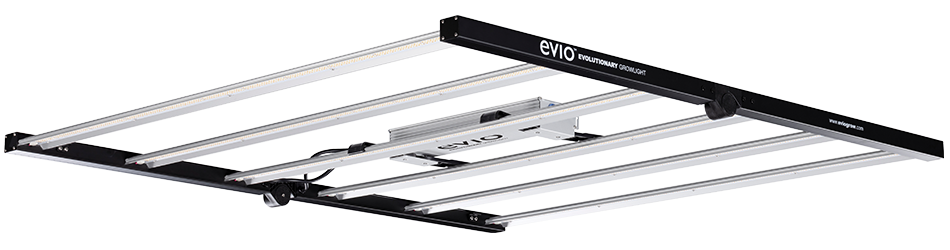

The Evio AGX Series is a full-cycle top-lighting solution for commercial cannabis cultivation, with variable light intensities to use from vegetative growth to bloom.
SPECIFICATION FEATURES
Coverage and Uniformity
Superior uniformity means light distributed across the canopy more evenly and at higher intensities than HID. This allows for more plants under one light vs. HPS
Maximum Yield
Increase yields with optmized spectrum, better light distribution, and higher intensities across the canopy.
Ultra Efficient
2.7 and up to 3.02 umol/J efficacy, delivering high PPF levels while saving significant energy.
Lower Operating Cost
Drastically lower energy and maintenance cost with ultra efficient and long life LED. Reduce processing times with a full cycle solution.
Optimized Spectrum
Full-cycle spectrum optimized for fast growth and plant development. Designed to grow plants from seed, cloning to vegetative and flowering.
Excellent Support
Backed by a team experienced in supporting large scale commercial lighting projects, the AGX grow light provides peace of mind with excellent support to make your operation a success.

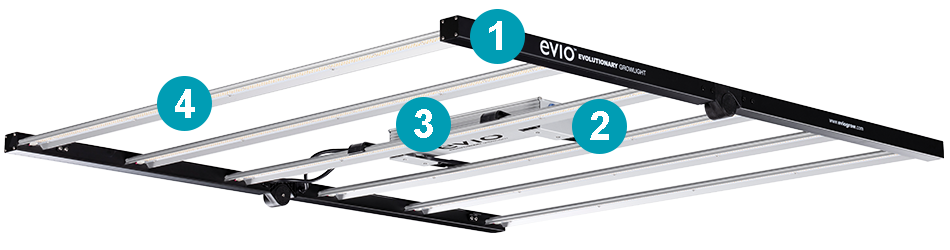

PRODUCT ANATOMY
- Slim Profile / Foldable Design
Easy shipping, handling, and storage - Advanced Passive Heatsink
Long life, lower maintenance, and less HVAC costs. - Robust Power Supply / Driver
High performance / quality for longevity and efficiency - Optimized LED Spectrum
High-grade LED, full spectrum, high intensity
PRODUCT CERTIFICATIONS
Included with the Grow Light: (1) LED AGX Grow Light Fixture, (1) 8.5-ft. Power Cord (240V NEMA 6-15P Plug), (1) RJ14 Data Cord (10ft), (2) Adjustable Pulley System, (2) 2-point Aircraft cable with carabiner, (1) Instruction Manual.

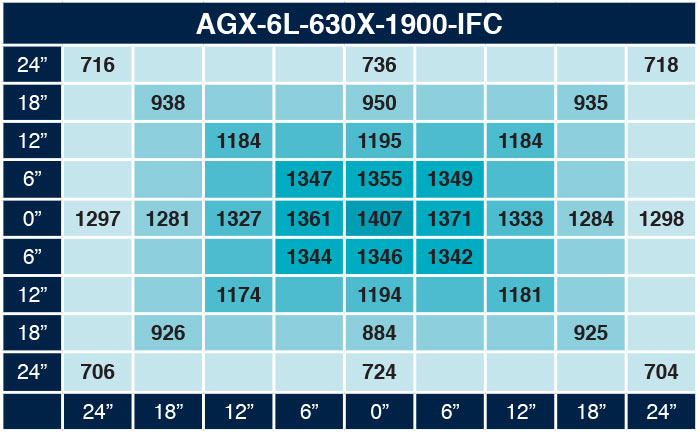

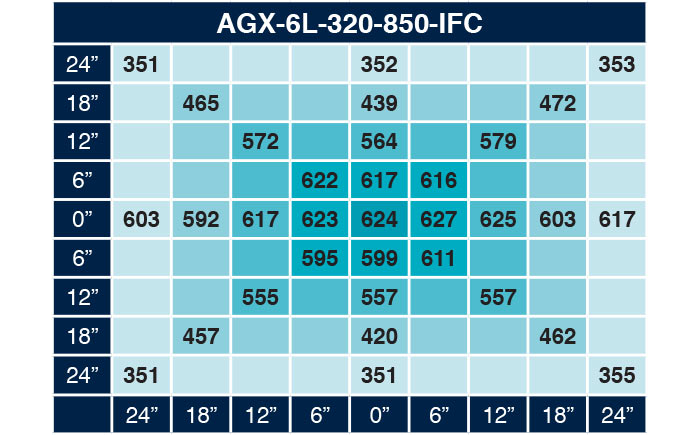

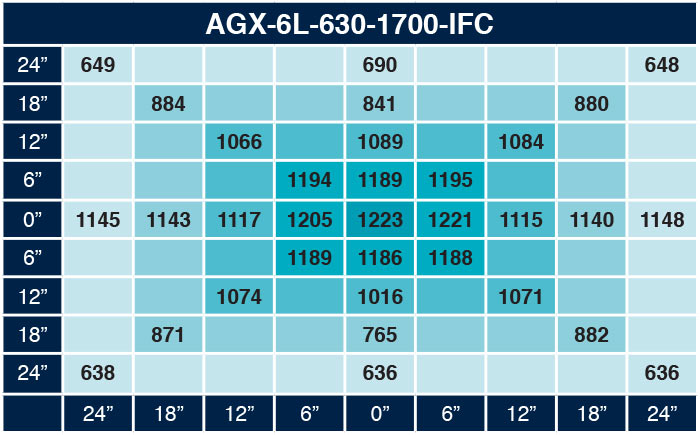

PPFD Distribution – 12” Height from Canopy
PERFORMANCE DATA
| Form Factor | Model No. | Input Power | PPF (Nominal) | PPE (Nominal) |
|---|---|---|---|---|
|
6-Bar |
AGX-6L-320-850-IFC |
320W |
850 μmol/s |
2.66 μmol/J |
|
AGX-6L-630-1700-IFC |
630W |
1700 μmol/s |
2.70 μmol/J |
|
|
AGX-6L-630X-1900-IFC |
630W |
1900 μmol/s |
3.02 μmol/J |

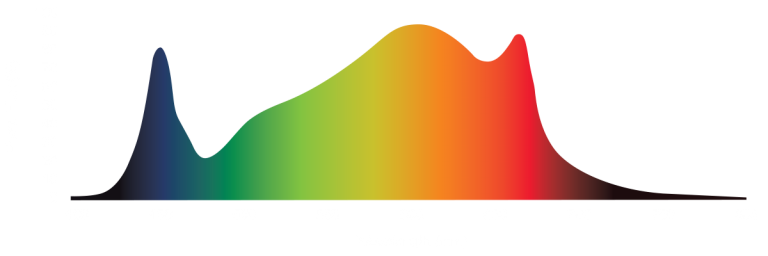

SPECTRUM DISTRIBUTION

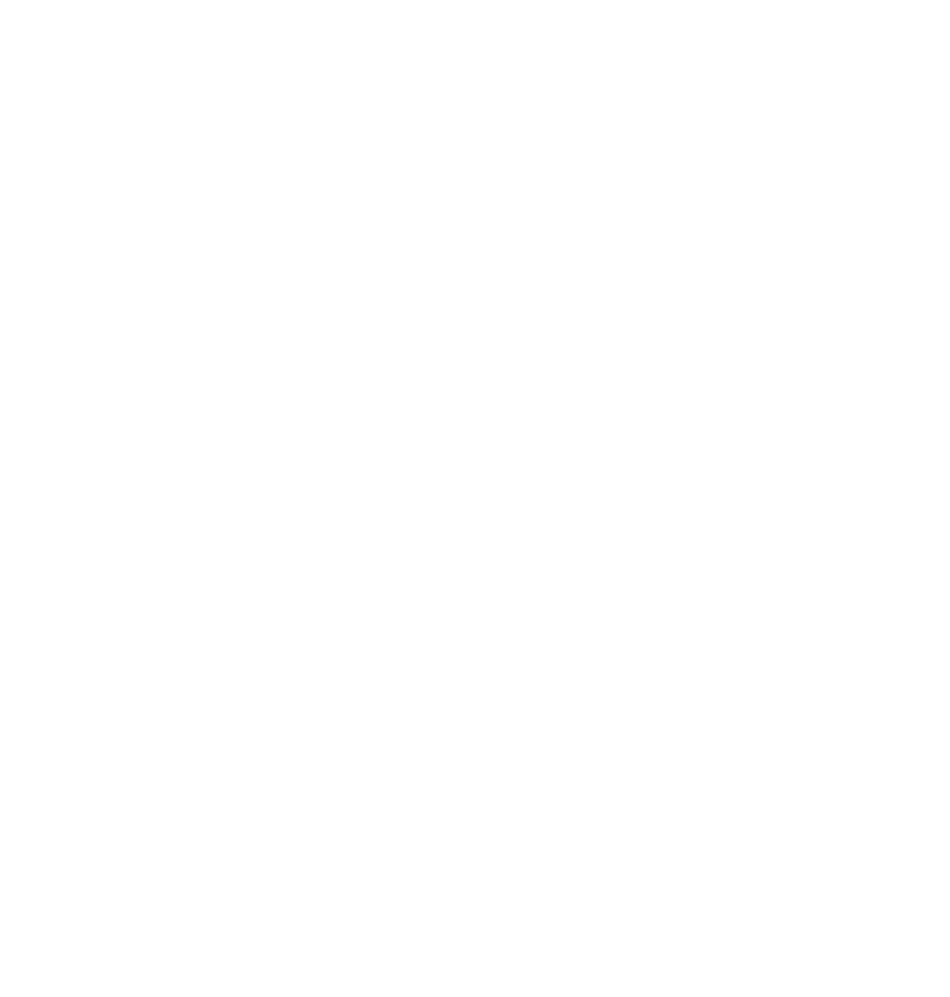

PRODUCT DIMENSIONS
PERFORMANCE SUMMARY
| AC Input Voltage | 120V-277V, 347V/480V |
| AC Input Power | 320W, 630W |
| Light Source | LED |
| Spectrum | Indoor Full-Cycle |
| Light Output PPF | See Configurations Tab |
| Efficacy | See Configurations Tab |
| Nominal Beam Angle | 120 Deg. |
| Mounting Height | 6”-15” Above Canopy |
| Coverage | 1 fixture per 4’ x 4’ area |
| Dimming | 0-10V Continuous (10-100%) |
| Operating Temp. | -20°C to 40°C |
| THD | < 20% |
| Life Rating | 75,000 hours |
| Certifications | ETL |
| Warranty | 5 Years |
| Ingress Protection | Damp Location |
APPLICATIONS
INDOOR
VEGETATIVE

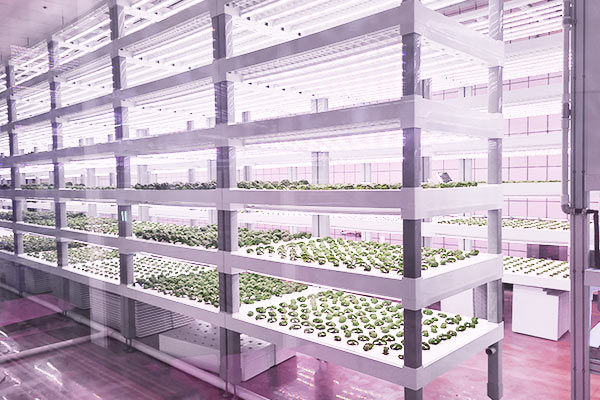

VERTICAL
